Colour Measuring System CM2

Colour Management System CM2

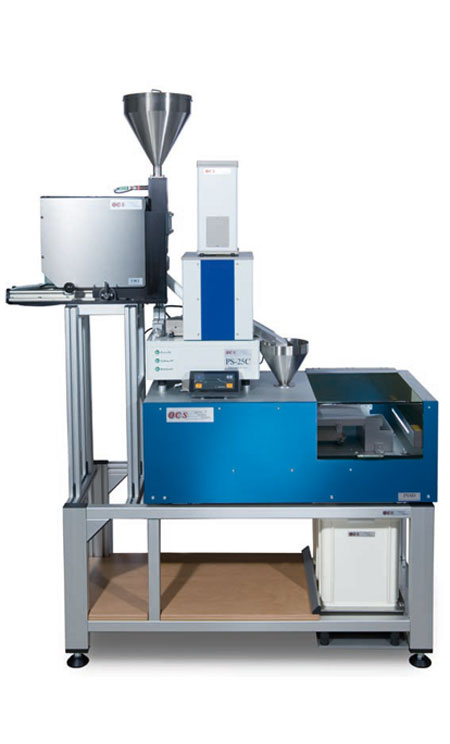

The Colour Measuring CM2 system from Optical control Systems, serves the automatic colour measurement of plastic granules. The granules are carried in a special measuring channel.

In the process it develops a granule column, which can be brought to the optimal measuring temperature through an air flush. In the measuring channel there is an opening which serves the measurement.

A rotary feeder (optional) provides a continuous transport of the granules.

A colour spectrometer records the colour spectrum of the granules through the instrumentation opening and generates the colour of the granules.

Different colour displays or standards can be realised e.g. CIE-L,a,b/X,Y,Z otherwise known as Yellowness Index

The data can be rounded up and assigned to a process control system.
