Manufactured By: Schleibinger Gerate

Shrinkage/Expansion Unit – Data Logger

Accessories for the Schleibinger Shrinkage/Expansion Unit

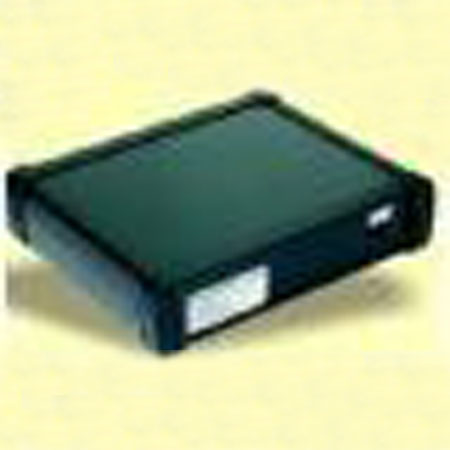

Data Logger
The shrinkage measurement values are digitised and stored by the data logger. Synchronous with the length change, temperature or humidity may be registered by the logger. The data-logger has an Ethernet interface and a built-in web-server. You can integrate the logger in your intranet to access the measurement data from every PC in your network using any internet browser. To one basic unit up to ten probes can be connected

Double Wall Unit
The stainless steel specimen container is made of a double wall for cooling and heating the sample. There are four 1/2″ connecting pipes for external cooling.

Compressibly Rubber
Made of neoprene rubber. To avoid sliding friction and to enable unstressed deformation of the sample.
Size for concrete – 1000 x 224 x 2mm
Size for Mortar – 1000 x 140 x 2mm

Temperature Measurement
Additional temperature measurement channel integrated into the Data-logger including RTD. Accuracy 0.5°C

Temperature/Humidity Measurement
Combined temperature and humidity measurement including a combined sensor. Up to 1 mixed channel and one temperature channel may be integrated in each data-logger. Accuracy – Humidity sensor – 0-100% +/-2% r.H. not condensing. Temperature accuracy 0.5°C
